External 8dBi Gain Cellular 4G LTE Antenna Waterproof Wide Band Blade Router Antenna

Brand Name : MS

Model Number : MS-4GFS-003

Certification : RoHS

Place of Origin : China

MOQ : 10 PCS

Price : USD$ 2 / PCS - USD$ 2.5 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS

Delivery Time : 5-8 days

Packaging Details : 30 PCS / BOX

Product Name : External High Gain 4G LTE Router Antenna

Keyword : Router Antenna

Frequency Range : 700-2700MHz

Gain : 8dBi

VSWR : < 2.0

Impedance : 50 Ohm

Polarization : Linear

Radiation Pattern : Omni- Directional

Connector : SMA / TS9 / CRC9

Cable Type : RG 174

Contact Now

1. Product Name

External 8dBi Gain Waterproof Wide Band 4G LTE Blade Router Antenna

2. Description

--2.1 Applications

4G/LTE (699-960/1710-2690 MHz)

3G Cellular Bands

2G Cellular Bands

CDMA Cellular Bands

GALILEO E1 (1575.42 MHz)

GPS (1575.42 MHz)

GLONASS (1592 - 1610 MHz)　

--2.2 Features

8dBi High Gain

Wide Band

Magnetic Mount

No Ground Plane Required

Indoor or Outdoor Use

3. Introduction

This is a magnetic mount 4G LTE terminal router antenna which has an omni directional, IP65 waterproof characteristic, also this external M2M antenna can be used in Telematics, Transportation and Remote Monitoring applications worldwide. It is designed to be mounted directly on metal surface of vehicles .

It can delivers stable omni-directional gain and highest efficient across all common 4G,3G & 2G global cellular bands from 698MHz to 2.7GHz.

4. Specs

Electrical Properties

1.1	Frequency	700-2700 MHz
1.2	Gain (peak)	8 dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-directional
1.6	Polarization	Linear /Vertical
1.7	Power Handling	5 W

Mechanical Properties

2.1	Cable	RG 174
2.2	Antenna Cover	ABS
2.3	Antenna Base	ABS
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black / White
2.7	Connector	SMA Plug / TS9 / CRC9

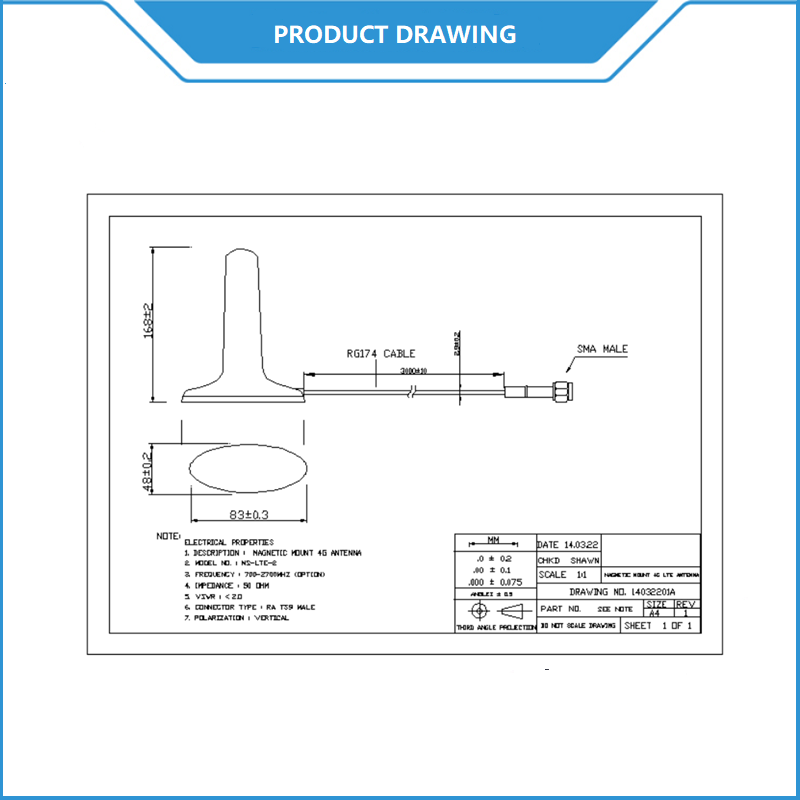

5. Antenna Drawing

External 8dBi Gain Cellular 4G LTE Antenna Waterproof Wide Band Blade Router Antenna

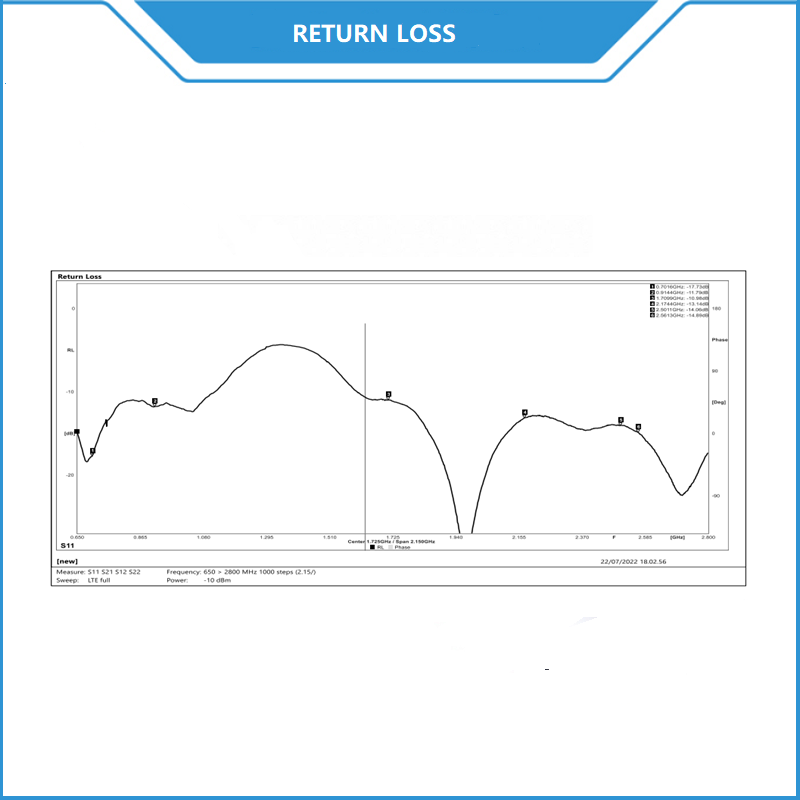

6. Return Loss

External 8dBi Gain Cellular 4G LTE Antenna Waterproof Wide Band Blade Router Antenna

7. Radiation Pattern

External 8dBi Gain Cellular 4G LTE Antenna Waterproof Wide Band Blade Router Antenna
