External Cellular 2G 3G 4G LTE Antenna CAT M1 Magnetic Mount

Brand Name : MS

Model Number : MS-LTEXP-001

Certification : RoHS

Place of Origin : China

MOQ : 100 PCS

Price : USD$ 1 / PCS - USD$ 1.1 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS

Delivery Time : 5-8 days

Packaging Details : 50 PCS / BAG

Product Name : External 4G LTE Magnetic Mount Antenna

Keyword : 4G LTE Magnetic Mount Antenna

Frequency Range : 700-2700MHz

Gain : 5dBi

VSWR : < 2.5

Impedance : 50 Ohm

Polarization : Linear

Radiation Pattern : Omni-Directional

Cable Type : RG174

Connector Type : TS9 / CRC9 / SMA / TNC / FAKRA

Contact Now

1. Product Name

External Cellular 2G /3G/ 4G LTE/CAT-M1 Magnetic Mount Antenna

2. Description

--2.1 Applications

Infotainment System

HD Video Transmission

Dash Cameras

Connected Cars

Self-Driving Cars

Fleet Management

Gateways

Routers

Public Transportation

Logistics

--2.2 Features

LTE / GSM / CDMA /DCS /PCS / WCDMA /UMTS / HSDPA / GPRS/ EDGE / GPS / Wi-Fi
698MHz to 960MHz, 1575.42MHz,1710MHz to 2700MHz, 3500MHz
3m RG174 Cable, SMA(M) Connector
Typical 40% Efficiency and 5dBi Peak Gain
Robust High Strength Super Magnet Mount
Custom cables and connectors available

3. Introduction

This magnetic ultra wide band cellular antenna delivers stable high omni directional gain and efficiencies across all common 2G , 3G / 4G global cellular bands from 700-2700MHz.

4. Specs

Electrical Properties

1.1	Frequency	700-2700 MHz
1.2	Gain (peak)	5 dBi
1.3	V.S.W.R	2.5 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-Directional
1.6	Polarization	Linear
1.7	Power Handling	5W

Mechanical Properties

2.1	Cable	RG174
2.2	Antenna Cover	Iron
2.3	Antenna Base	Magnetic Mount
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	TS9 / CRC9 / SMA / TNC / FAKRA

5. Antenna Drawing

External Cellular 2G 3G 4G LTE Antenna CAT M1 Magnetic Mount

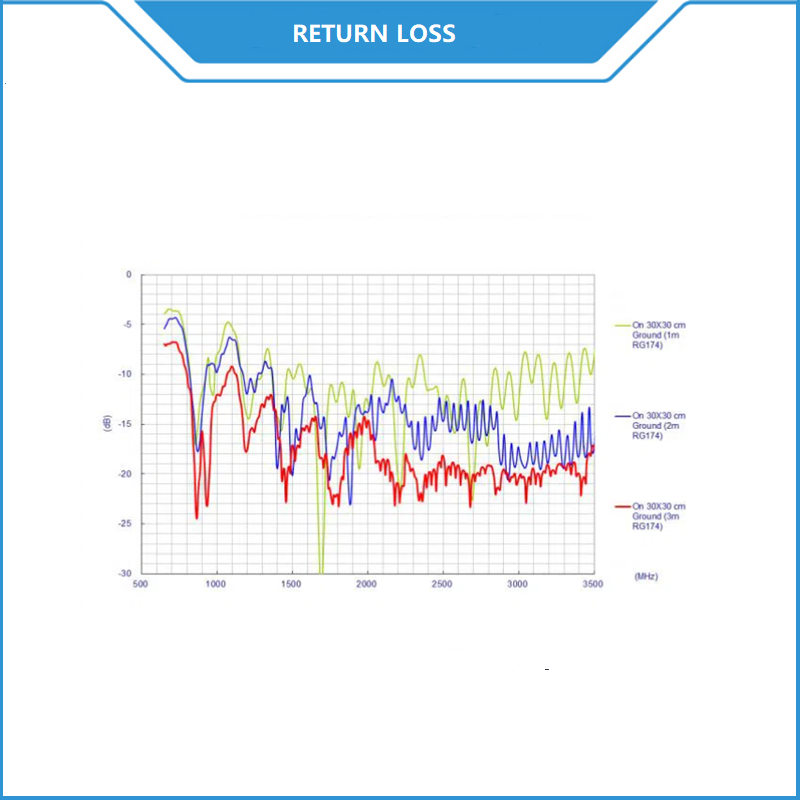

6. Return Loss

External Cellular 2G 3G 4G LTE Antenna CAT M1 Magnetic Mount

7. Radiation Pattern

External Cellular 2G 3G 4G LTE Antenna CAT M1 Magnetic Mount
