External T-Bar 2G/3G/4G LTE Multi-Band Glass/Surface Mount Antenna

Brand Name : MS

Model Number : MS-4GLTE-002

Certification : RoHS

Place of Origin : China

MOQ : 100 PCS

Price : USD$ 0.7 / PCS - USD$ 0.8 / PCS

Payment Terms : D/P

Product Name : External Multi Band GSM Glass Mount Antenna

Frequency Range : 700-2700 MHz

Gain : 3 dBi

VSWR : < 2.0

Impedance : 50 ohm

Max Input Power : 5 W

Radiation Pattern : Omni-Directional

Polarization : Linear / Vertical

Antenna Dimensions : 106*13

Connector Type : SMA Male or Customized

Color : Black

Weight : 42 g

Contact Now

1. Product Name

External T-Bar 2G/3G/4G LTE Multi-Band Glass/Surface Mount Antenna

2. Description

--2.1 Applications:

Fleet Management & Telematics

Vehicle Navigation / Car Window

DAS Applications

Public Safety

Mining & Construction

--2.2 Features:

4G LTE 698-960MHz, 1710-2690MHz Supporting

Adhesive/Glass/Surface Mount

Quad Band Patch Antenna

3dBi High Gain

Ground plane Independent

Alternative Connectors: FME / TNC / SMA / MMCX

3. Introduction

This LTE antenna supports all common LTE frequency bands making it ideal for LTE, CAT-M1 and NB-IOT applications as well as 2G and 3G systems. It is easily customized with different cable lengths and connectors for volume orders

4. Specs

Electrical Properties

1.1	Frequency	700-2700
1.2	Gain (peak)	3 dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	5 W

Mechanical Properties

2.1	Cable	RG174
2.2	Antenna Cover	TPE
2.3	Antenna Base	3M Sticker
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug / FME / MMCX

5. Antenna Drawing

External T-Bar 2G/3G/4G LTE Multi-Band Glass/Surface Mount Antenna

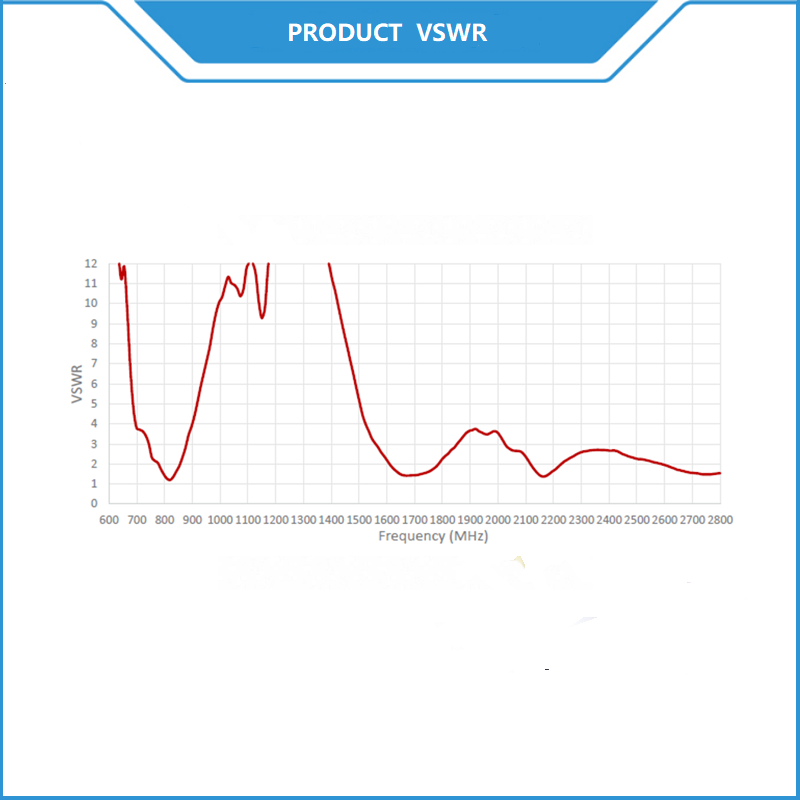

6. VSWR

External T-Bar 2G/3G/4G LTE Multi-Band Glass/Surface Mount Antenna

7. Radiation Pattern

External T-Bar 2G/3G/4G LTE Multi-Band Glass/Surface Mount Antenna
