915MHz 3dBi ISM Band Omni Directional Outdoor Fiberglass Antenna

Brand Name : MS

Model Number : MS-915BLG-001

Certification : RoHS

Place of Origin : China

MOQ : 10 PCS

Price : USD$ 15 / PCS - USD$ 18 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS

Delivery Time : 5-8 days

Packaging Details : 10 PCS / BOX

Product Name : 915MHz Fiberglass Omni Directional Outdoor Antenna

Keyword : 915MHz Fiberglass Antenna

Frequency Range : 902-928 MHz

Gain : 3dBi

VSWR : < 2.0

Impedance : 50 Ohm

Polarization : Linear

Radiation Pattern : Omni-Directional

Horizontal Bandwidth : 360 Deg

Vertical Bandwidth : 60 Deg

Input Power : 50 W

Connector : N Male / N Female

Contact Now

Outdoor 915MHz 3dBi ISM Band Omni Directional Fiberglass Antenna

1. Product Name

Outdoor 915MHz 3dBi ISM Band Omni Directional Fiberglass Antenna

2. Description

--2.1 Applications

Metering

Industrial / Environmental Monitoring

Remote Asset Monitoring

Mesh Network

--2.2 Features

3dBi Peak Gain

Omni Directional

360mm in Length

Efficiency > 60 %

Connector : N Male or N Female

Wall / Pole Mount (U Bracket)

3. Introduction

This is a fiberglass omni directional outdoor antenna operating in 902-928MHz ISM band, which is designed to offer long distance coverage .

It is one of the most widely used license free ISM bands with 3dBi Peak Gain.

4. Specs

Electrical Properties

1.1	Frequency	902-928MHz
1.2	Gain (peak)	3dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-Directional
1.6	Polarization	Linear
1.7	Power Handling	50 W

Mechanical Properties

2.1	Cable
2.2	Antenna Cover	Fiberglass
2.3	Antenna Base	U Bracket
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	N Male / N Female

5. Antenna Drawing

915MHz 3dBi ISM Band Omni Directional Outdoor Fiberglass Antenna

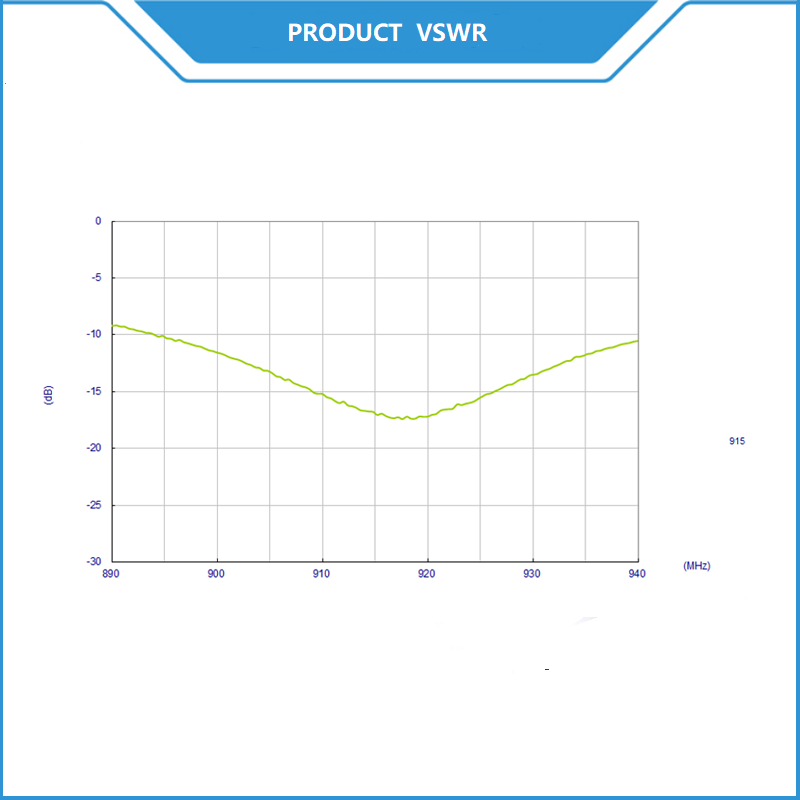

6. VSWR

915MHz 3dBi ISM Band Omni Directional Outdoor Fiberglass Antenna

7. Radiation Pattern

915MHz 3dBi ISM Band Omni Directional Outdoor Fiberglass Antenna
