External 2dBi 433MHz ISM Band Panel Mount Puck Antenna

Brand Name : MS

Model Number : MS-433JG-001

Certification : RoHS

Place of Origin : China

MOQ : 100 PCS

Price : USD$ 1.5 / PCS - USD$ 2 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS

Delivery Time : 5-8 days

Packaging Details : 100 PCS / BAG

Product Name : External Waterproof 433MHz Puck Antenna

Frequency Range : 410-450 MHz

Gain : 2 dBi

VSWR : < 2.0

Power Capacity : 3 W

Impedance : 50 Ω

Polarization : Linear / Vertical

Radiation Pattern : Omni

Dimensions : 46*15 mm

Cable : RG174

Connector : SMA Male or Customized

Mounting : M12 --Screw

Contact Now

External 2dBi 433MHz ISM Band Panel Mount Puck Antenna

1. Product Name

External 2dBi 433MHz ISM Band Panel Mount Puck Antenna

2. Description

--2.1 Applications

ISM on 433MHz Band

Mesh Networks, Smart Metering

Outdoor or Indoor Assets

RFID

Remote Control

--2.2 Features

Screw Mount

2dBi Gain

ISM 433MHz Band

Dimensions: 46*15 mm

IP65 Rated

3. Introduction

This is a high performance 433MHz permanent mount antenna for external use on mesh Networks, smart metering and outdoor and indoor assets. Its ruggedized designed makes it suitable for heavy duty applications.

The puck antenna is well suited to mounting securely for outside use in all weathers. The M12 x 8mm long screw thread provides a firm fix to its mounting surface. It has an adhesive base for dual mounting purposes and to prevent the risk of water ingress when used in outdoor environments

4. Specs

Electrical Properties

1.1	Frequency	410-450
1.2	Gain (peak)	2 dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-directional
1.6	Polarization	Linear / Vertical
1.7	Power Handling	3 W

Mechanical Properties

2.1	Cable	RG174
2.2	Antenna Cover	TPE
2.3	Antenna Base	M12-Screw Mount
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug

5. Antenna Drawing

External 2dBi 433MHz ISM Band Panel Mount Puck Antenna

6. VSWR

External 2dBi 433MHz ISM Band Panel Mount Puck Antenna

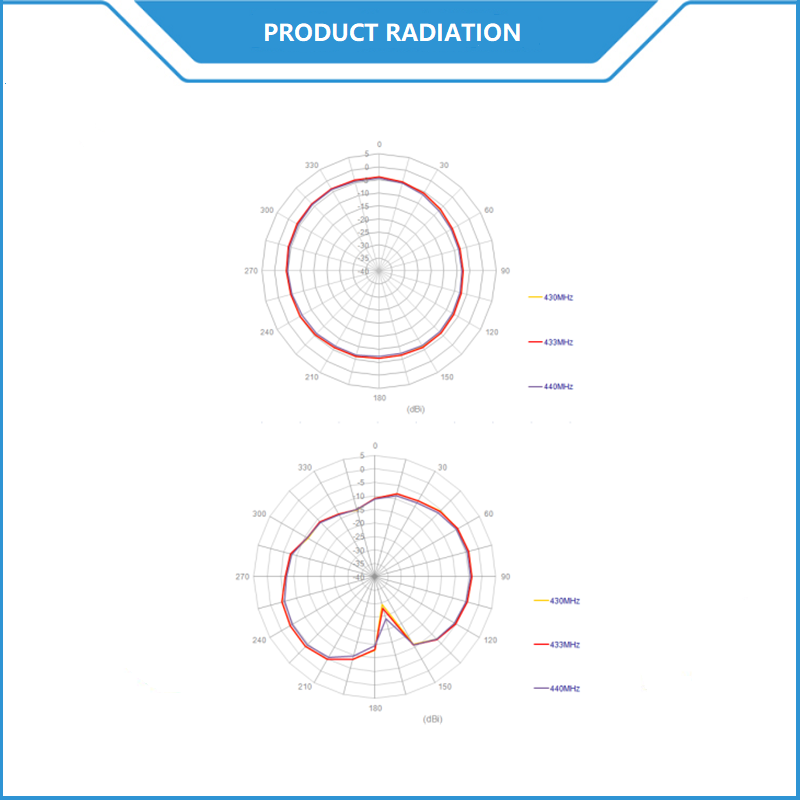

7. Radiation Pattern

External 2dBi 433MHz ISM Band Panel Mount Puck Antenna
