External UHF RFID Antenna 3dBi ISM 915MHz Terminal Mount Dipole Antenna

Brand Name : MS

Model Number : MS-915JT-003

Certification : RoHS

Place of Origin : China

MOQ : 100 PCS

Price : USD$ 1.2 / PCS - USD$ 1.5 / PCS

Payment Terms : D/P

Supply Ability : 100000 PCS

Delivery Time : 5-8 days

Packaging Details : 100 PCS / BAG

Product Name : External 3dBi ISM 915MHz Terminal Mount Dipole Antenna

Keyword : 915MHz Terminal Antenna

Frequency Range : 902-928 MHz

Gain : 3dBi

VSWR : < 2.0

Impedance : 50 Ohm

Polarization : Linear

Radiation Pattern : Omni-Directional

Connector : SMA Male

Length : 198mm

Contact Now

External 3dBi ISM 915MHz Terminal Mount Dipole Antenna

1. Product Name

External 3dBi ISM 915MHz Terminal Mount Dipole Antenna

2. Description

--2.1 Applications

Smart Metering

Remote Monitoring

Industrial IoT

Connected Enterprise

--2.2 Features

3dBi Gain

ISM 915MHz Band Operation

High Efficiency up to 60%

Hinged and Rotated

Height :198 mm

3. Introduction

This is a high performance 915MHz terminal SMA mount dipole antenna which has 198mm length and 13mm in diameter and also can be mounted straight or right angle.

This antenna performs quite well in free space, making it an ideal solution in areas where there may be no ground plane .

4. Specs

Electrical Properties

1.1	Frequency	902-928 MHz
1.2	Gain (peak)	3 dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-Directional
1.6	Polarization	Linear
1.7	Power Handling	5W

Mechanical Properties

2.1	Cable	RG178
2.2	Antenna Cover	TPE
2.3	Antenna Base	PC+PBT
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black / White
2.7	Connector	SMA Plug

5. Antenna Drawing

External UHF RFID Antenna 3dBi ISM 915MHz Terminal Mount Dipole Antenna

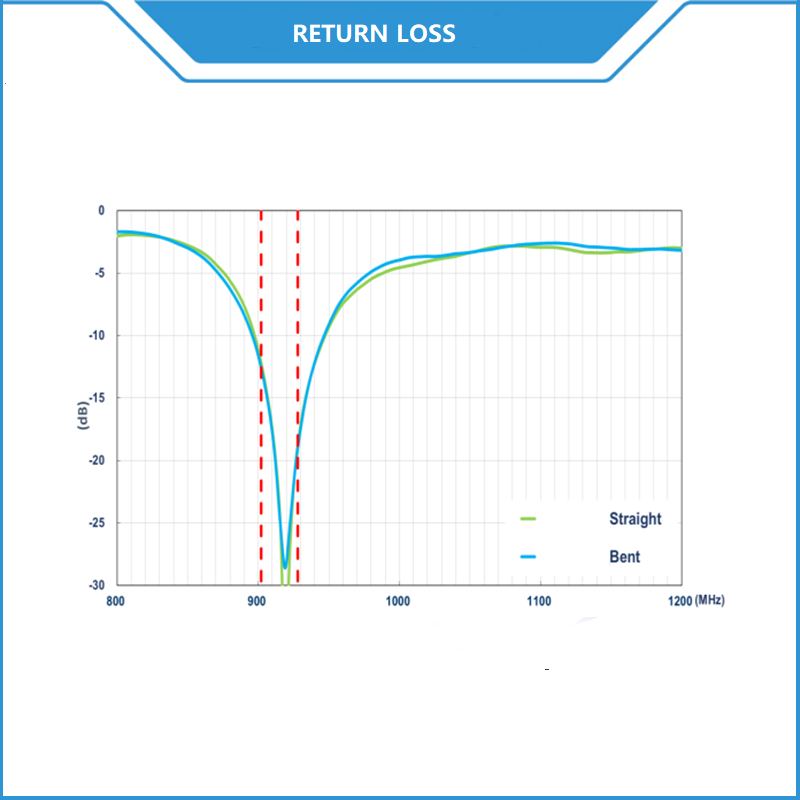

6. VSWR

External UHF RFID Antenna 3dBi ISM 915MHz Terminal Mount Dipole Antenna

7. Radiation Pattern

External UHF RFID Antenna 3dBi ISM 915MHz Terminal Mount Dipole Antenna
