External Cellular 2G 3G Antenna GSM SMA Direct Mount Stubby Antenna

Product Categories

MS TELECOM CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

External Cellular 2G 3G Antenna GSM SMA Direct Mount Stubby Antenna

Brand Name : MS

Model Number : MS-GSM-XLJ-001

Certification : RoHS

Place of Origin : China

MOQ : 100 PCS

Price : USD$ 0.3 / PCS - USD$ 0.35 / PCS

Payment Terms : D/P

Supply Ability : 100000 PCS

Delivery Time : 5-8 days

Packaging Details : 100 PCS / BAG

Product Name : External Cellular 2G(GSM) SMA Direct Mount Stubby Antenna

Keyword : GSM Stubby Antenna

Frequency Range : 824-960 / 1710-1990 MHz

Gain : 0dBi

VSWR : < 2.5

Impedance : 50 Ohm

Polarization : Linear

Radiation Pattern : Omni

Connector : SMA Male / RA SMA Male

Weight : 7g

Contact Now

External Cellular 2G 3G Antenna GSM SMA Direct Mount Stubby Antenna

1. Product Name

External Cellular 2G(GSM) SMA Direct Mount Stubby Antenna

2. Description

--2.1 Applications

Cellular Networks

GSM 850 , GSM 900 , GSM 1800, GSM 1900

UMTS

M2M Applications

Telemetering

Remote Control

Maintenance

--2.2 Features

GSM Quad-Band 800/900/1800/1900 MHz
51mm length
TPE housing
SMA male connector
RoHS Compliant

3. Introduction

This quad- band GSM antenna is 51mm long which has 2dBi of Peak gain and 50Ω impedance so it will work fantastically with just about any 850/900/1800/1900MHz wireless receiver/transmitter such as any Cellular or GSM/GPRS device.

4. Specs

Electrical Properties

1.1	Frequency	900/1800 MHz
1.2	Gain (peak)	0dBi
1.3	V.S.W.R	2.5 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-Directional
1.6	Polarization	Linear
1.7	Power Handling	1W

Mechanical Properties

2.1	Cable
2.2	Antenna Cover	TPE
2.3	Antenna Base	Brass
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	RA-SMA Plug / SMA Plug

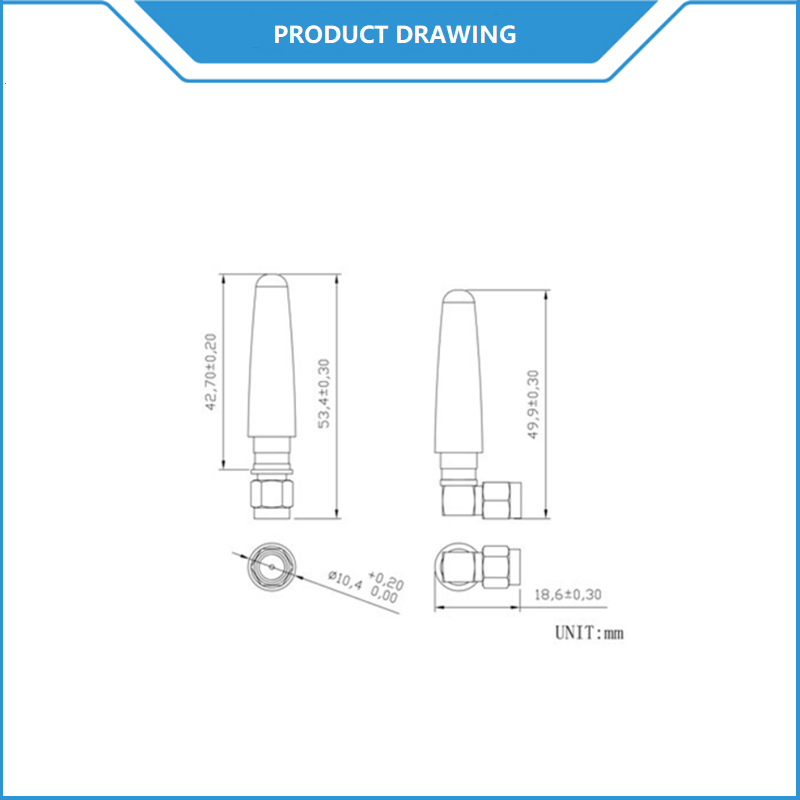

5. Antenna Drawing

External Cellular 2G 3G Antenna GSM SMA Direct Mount Stubby Antenna

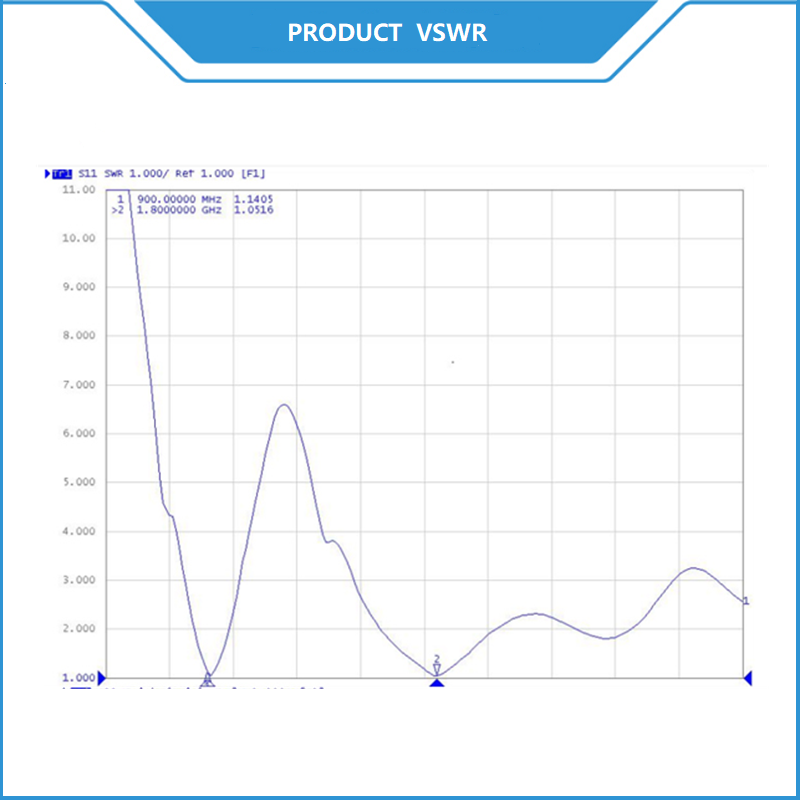

6. VSWR

External Cellular 2G 3G Antenna GSM SMA Direct Mount Stubby Antenna

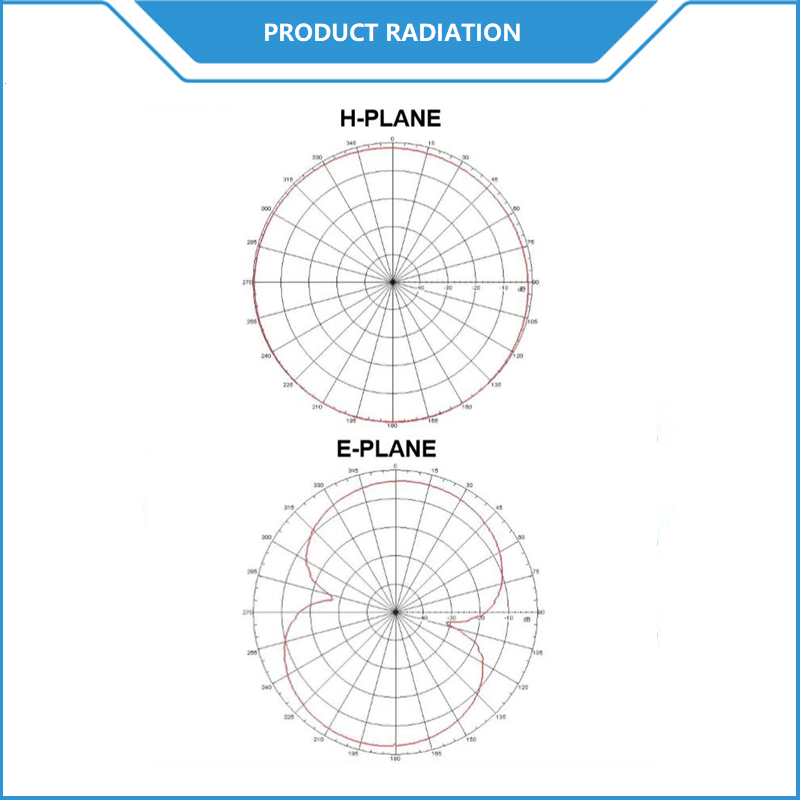

7. Radiation Pattern

External Cellular 2G 3G Antenna GSM SMA Direct Mount Stubby Antenna
