External 2dBi Quad Band GPRS GSM 3G Stubby Magnetic Mount Antenna

Product Categories

MS TELECOM CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

External 2dBi Quad Band GPRS GSM 3G Stubby Magnetic Mount Antenna

Brand Name : MS

Model Number : MS-GSMXP-002

Certification : RoHS

Place of Origin : China

MOQ : 100 PCS

Price : USD$ 1.2 / PCS - USD$ 1.3 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS

Delivery Time : 5-8 days

Packaging Details : 100 PCS / BAG

Product Name : GSM GPRS 3G Magnetic Mount Antenna

Keywords : 2G 3G Antenna

Frequency Range : 824-960 / 1710-2170 MHz

Gain : 3dBi

Impedance : 50 ohm

VSWR : < 2.0

Polarization : Vertical

Radiation Pattern : Omni-Directional

Dimensions : 105*34 mm

Cable Type : RG 174

Connector : SMA or Customized

Mounting : Magnetic

Contact Now

External 2dBi Stubby Magnetic Mount Quad Band GSM (GPRS) 3G Antenna

1. Product Name

External 2dBi Stubby Magnetic Mount Quad Band GSM (GPRS) 3G Antenna

2. Description

--2.1 Applications

ISM Bands

RFID on 868 / 915 MHz

GSM GPRS Systems

3G and UMTS Systems

--2.2 Features

2dBi Gain

Magnetic Mount

Connector and Cable Optionals

Quad Band GSM and 3G Frequency

105*35 mm

3. Introduction

This is a magnetic mount antenna is very popular, and also can be used by many users of GSM / GPRS & 3G.

With cables and connectors optionals goes by with cable length. It is ideally suited to metering or alarm panels as well as manufacturers evaluation kits as it provides a fast, reliable fit for installers.

4. Specs

Electrical Properties

1.1	Frequency	824-960 / 1710-2170 MHz
1.2	Gain (peak)	2dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	5W

Mechanical Properties

2.1	Cable	RG 174
2.2	Antenna Cover	TPE
2.3	Antenna Base	Magnet
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug or customized

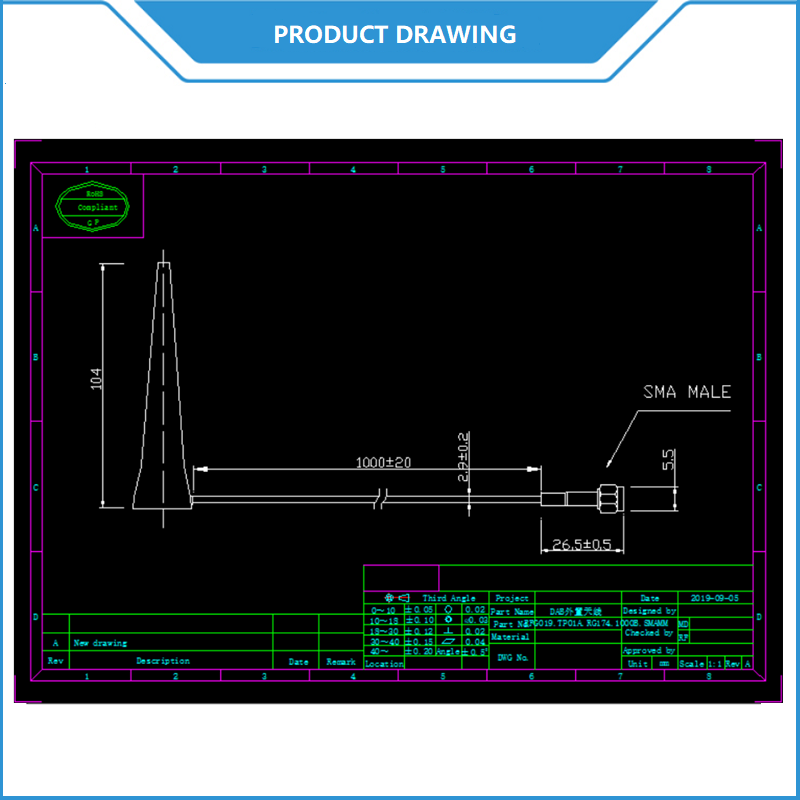

5. Antenna Drawing

External 2dBi Quad Band GPRS GSM 3G Stubby Magnetic Mount Antenna

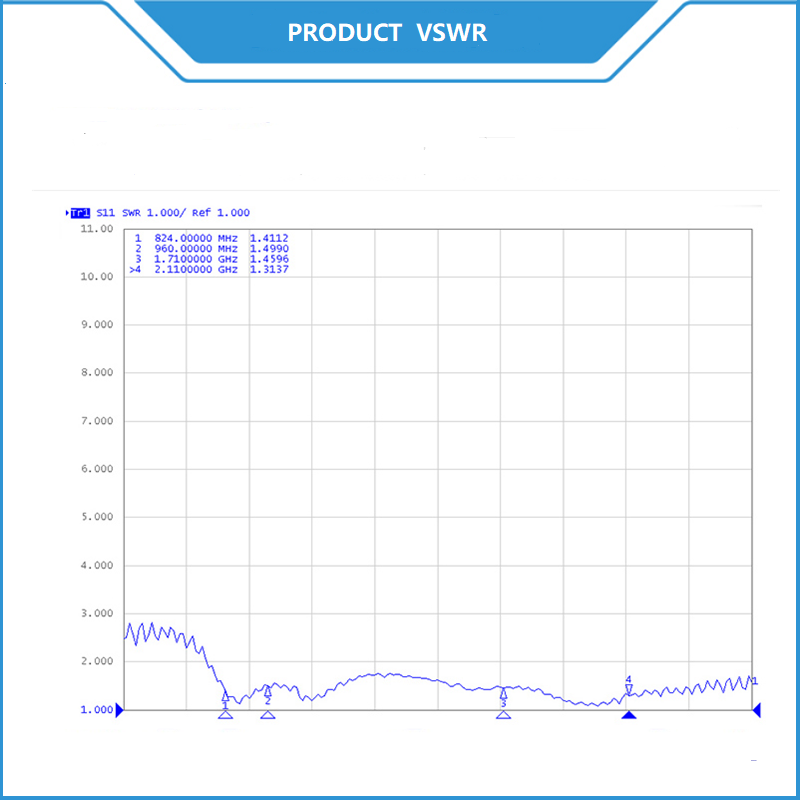

6. VSWR

External 2dBi Quad Band GPRS GSM 3G Stubby Magnetic Mount Antenna

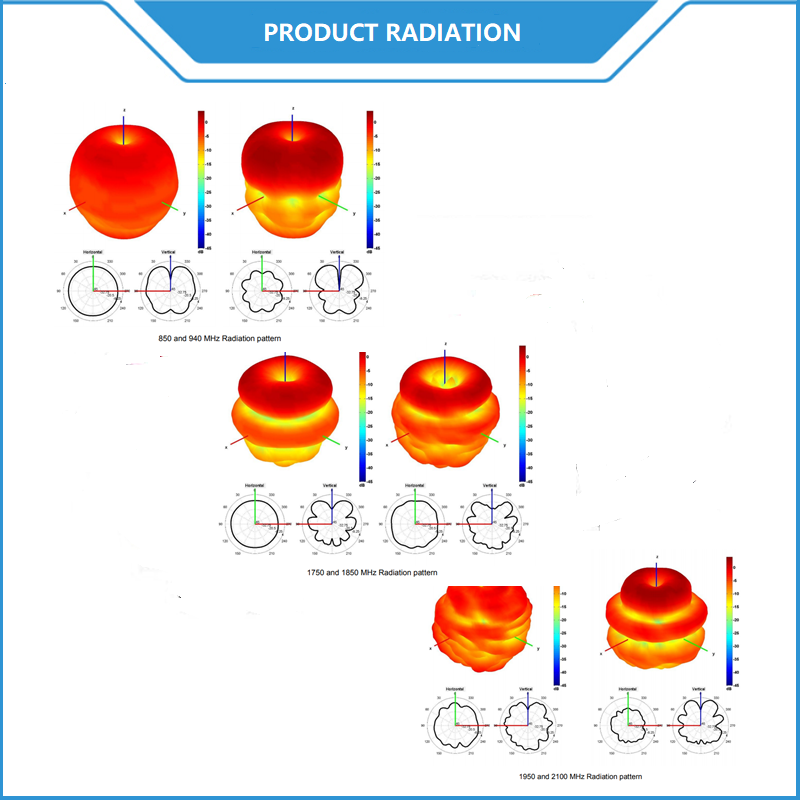

7. Radiation Pattern

External 2dBi Quad Band GPRS GSM 3G Stubby Magnetic Mount Antenna
