External Penta Band GSM UMTS 2G 3G Antenna Hinged SMA Male Dipole Antenna

Brand Name : MS

Model Number : MS-GSMJT-003

Certification : RoHS

Place of Origin : China

MOQ : 100 PCS

Price : USD$ 0.6 / PCS - USD$ 0.8 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS

Delivery Time : 5-8 days

Packaging Details : 100 PCS / BAG

Product Name : External Penta-Band GSM UMTS Hinged SMA Male Dipole Antenna

Keyword : GSM Terminal Antenna

Frequency Range : 824-960 /1710-2170 MHz

Gain : 2 dBi

VSWR : < 2.0

Impedance : 50 ohm

Polarization : Linear

Radiation Pattern : Omni

Length : 108 mm

Connector : SMA Male or Customized

Contact Now

External Penta-Band GSM UMTS Hinged SMA Male Dipole Antenna

1. Product Name

External Penta-Band GSM UMTS Hinged SMA Male Dipole Antenna

2. Description

--2.1 Applications

900MHz ISM Band
Cellular Band Applications
900MHz Digital Spread Spectrum Radios
900MHz Telemetry Products
LoRa, IoT, M2M Applications

--2.2 Features

2dBi Gain

Omni Directional

Rubber Duck Terminal Type

SMA Male Connector

108mm In Length

3. Introduction

This high performance GSM (900/1800MHz) omnidirectional “rubber-duck” antenna provides broad coverage and 3 dBi gain.
Connection is made via RA SMA Male connector with a hardened TPEE casing, this antenna is a good compact 2G antenna for remote monitoring devices or telematics applications.

4. Specs

Electrical Properties

1.1	Frequency	824-960 / 1710-2170 MHz
1.2	Gain (peak)	2dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	5W

Mechanical Properties

2.1	Cable	RG178
2.2	Antenna Cover	TPEE
2.3	Antenna Base	PC+PBT
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug or Customized

5. Antenna Drawing

External Penta Band GSM UMTS 2G 3G Antenna Hinged SMA Male Dipole Antenna

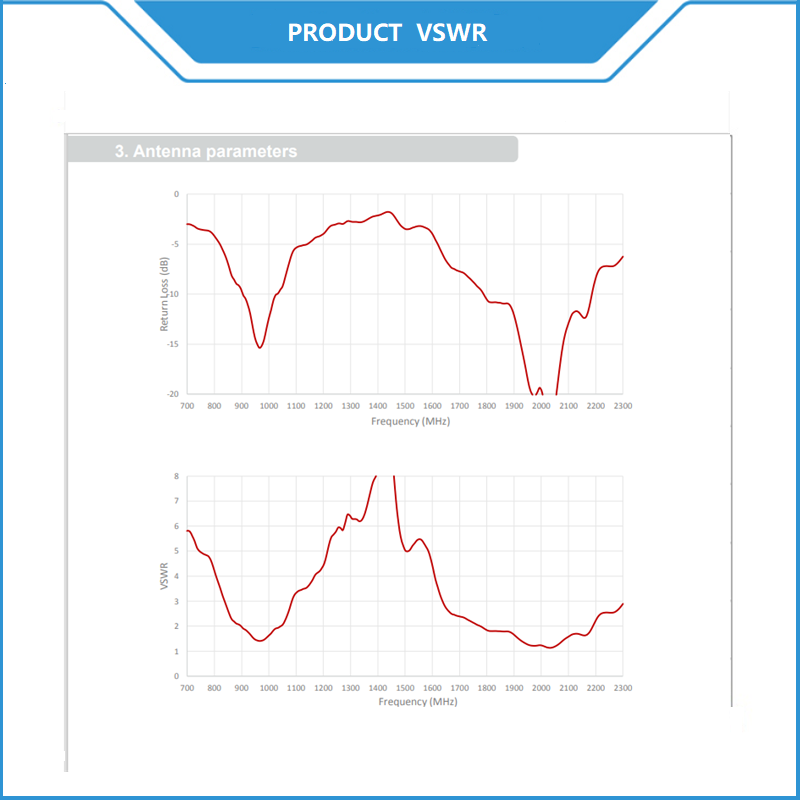

6. VSWR

External Penta Band GSM UMTS 2G 3G Antenna Hinged SMA Male Dipole Antenna

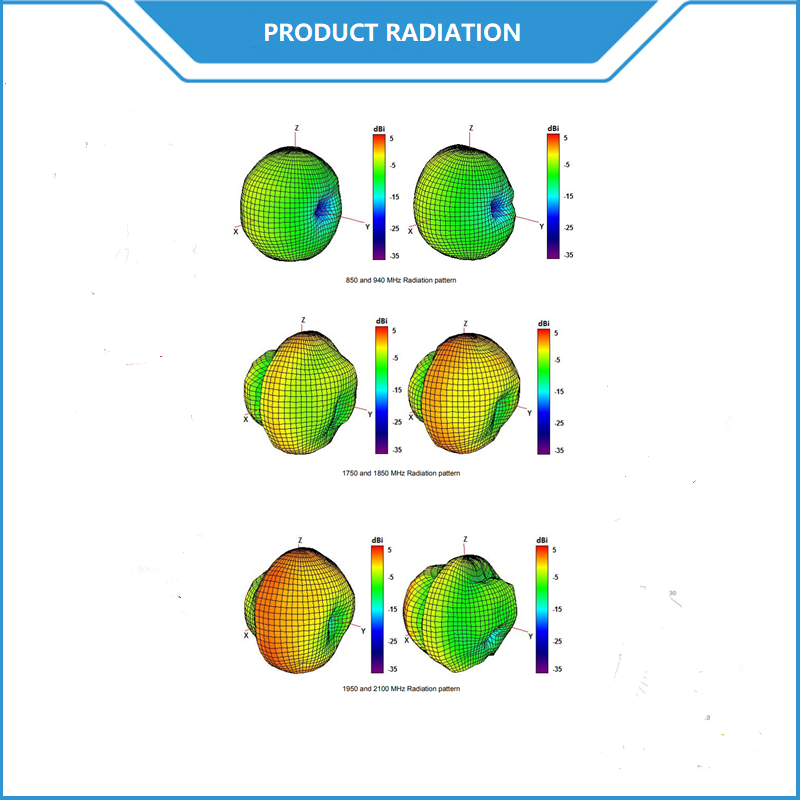

7. Radiation Pattern

External Penta Band GSM UMTS 2G 3G Antenna Hinged SMA Male Dipole Antenna
