Indoor UHF VHF TV Antenna Amplified Digital DVB-T HDTV TV Antenna

Brand Name : MS

Model Number : MS-TV-001

Certification : RoHS

Place of Origin : China

MOQ : 100 PCS

Price : USD$ 2 / PCS - USD$ 2.5 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS / Month

Delivery Time : 7-10 days

Packaging Details : 1 PCS / BAG

Product Name : Indoor HDTV TV Antenna

Frequency Range : 470-862 MHz

Gain : 15 dBi

VSWR : < 2.5

Impedance : 75 Ohm

Polarization : Vertical

Input Power : 3-5 V

Connector : F Male and USB

Contact Now

Indoor UHF VHF TV Antenna Amplified Digital DVB-T HDTV TV Antenna



1. Product Name:

    Indoor Amplified Digital HDTV TV Antenna



2. Description

    Optimised reception for current DVB-T2 HD and DVB-T stations
     Power supply possible via any USB port (television or desktop computer)
     Wide range of set-up options and wall-mounting
     Extremely thin DVB T2 antenna with with an excellent received unit
     Extra-long 3m-5m supply cable



3. Applications

    DVB-T (terrestrial) / DVB-T 2 (digital signal)
     ATSC (terrestrial /cable)
     ISDBT (terrestrial )/ ISDBTVD (Brazil )
     DTMB (terrestrial –CHINA)
     TDMB (terrestrial)



    Features:

     Suitable for digital (DVB-T/DVB-T2) terrestrial reception
      Mounting possibility for horizontal and vertical polarization
      Suitable for mast mounting
      Frequency range: 470 – 862 MHz (UHF)



4. Specs

Electrical Properties

1.1 Frequency 470-862 MHz
1.2 Gain (peak) 15 dBi
1.3 V.S.W.R 2.5 MAX
1.4 Return Loss -5 dB Maximum
1.5 Radiation Omni-Directional
1.6 Polarization Vertical
1.7 Power Handling 1W





Mechanical Properties

2.1 Cable 1.5C-2V Coaxial Cable
2.2 Antenna Cover Cu
2.3 Antenna Base Sticker
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black or White
2.7 Connector F Male /  USB

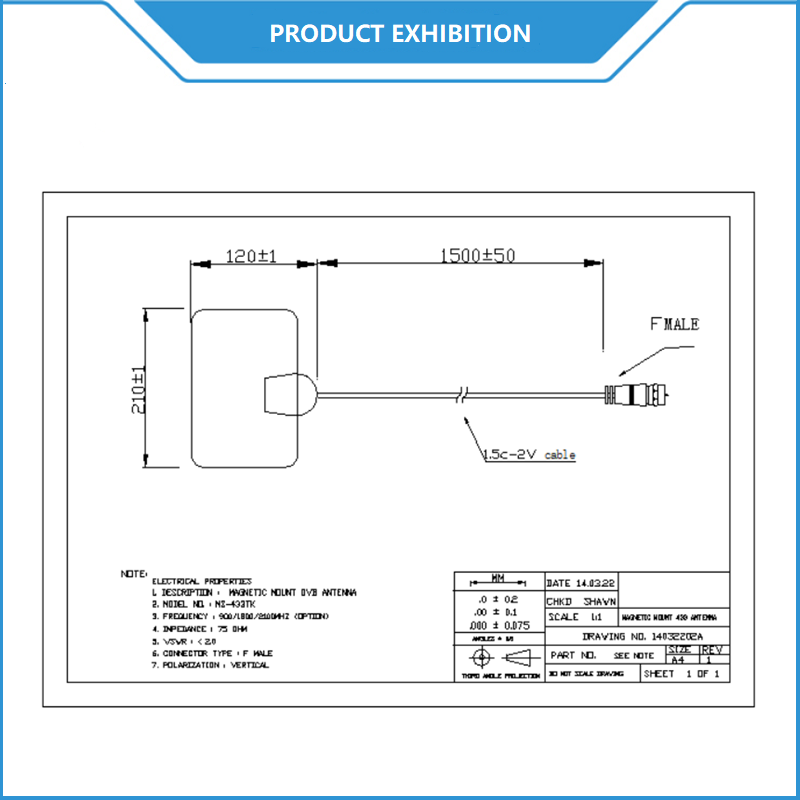

5. Antenna Drawing

Indoor UHF VHF TV Antenna Amplified Digital DVB-T HDTV TV Antenna

Indoor UHF VHF TV Antenna Amplified Digital DVB-T HDTV TV Antenna

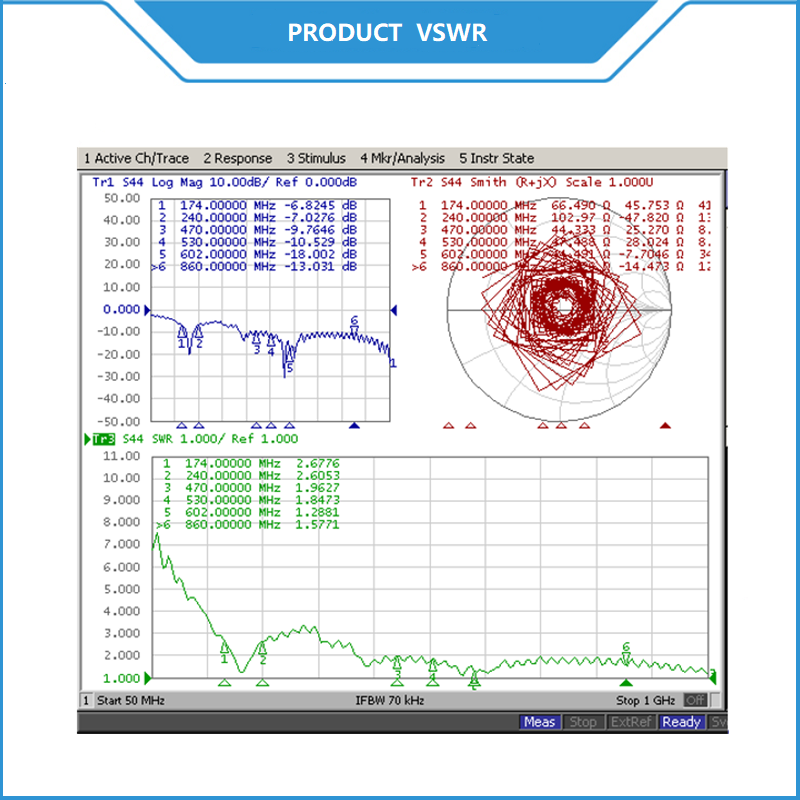

6. VSWR On Passive Test

Indoor UHF VHF TV Antenna Amplified Digital DVB-T HDTV TV Antenna

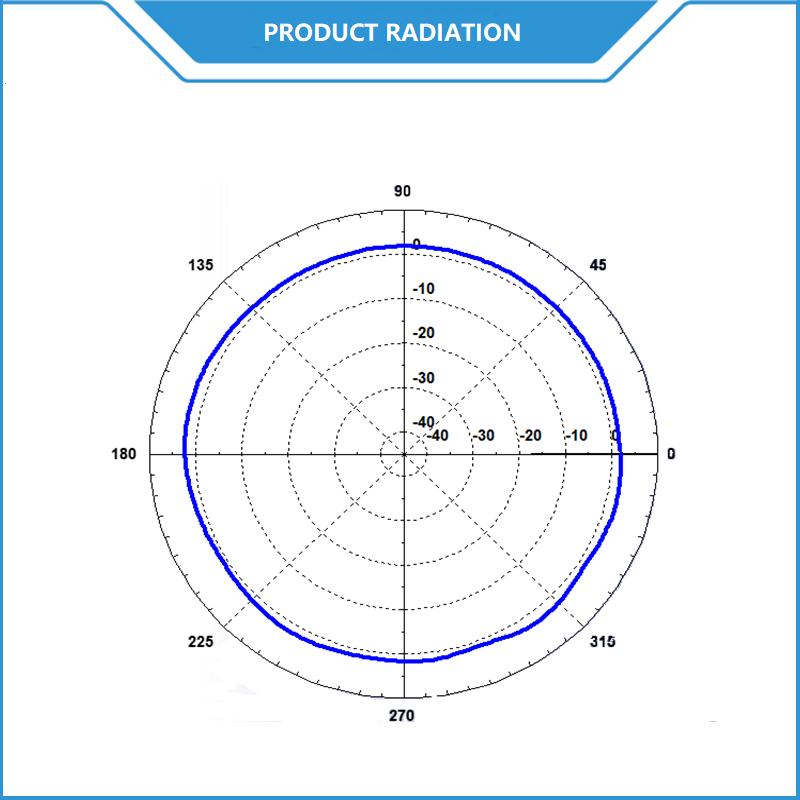

7. Radiation Pattern On Passive Test

Indoor UHF VHF TV Antenna Amplified Digital DVB-T HDTV TV Antenna

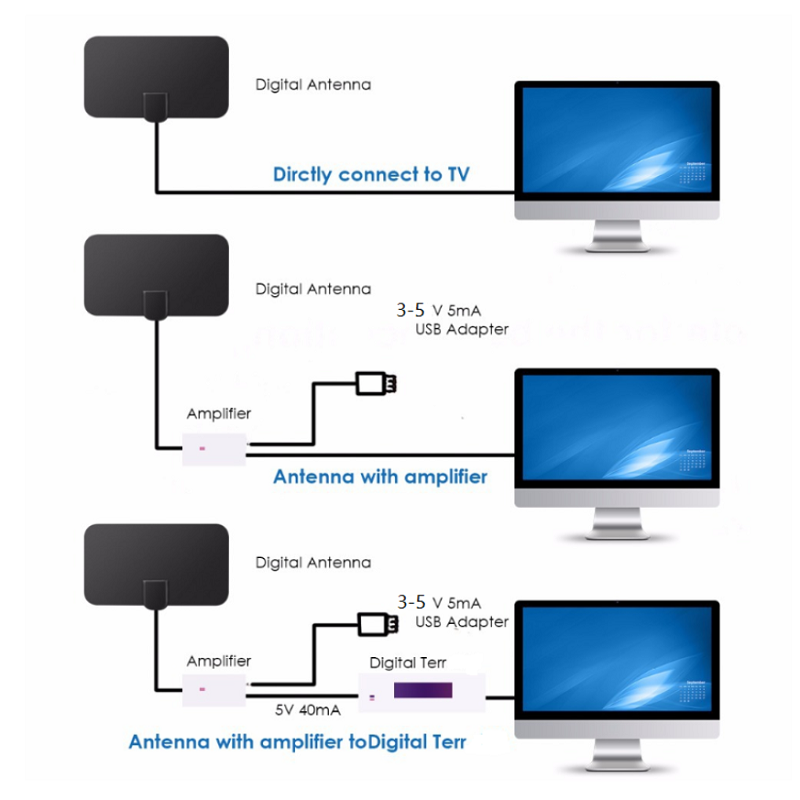

8. Installation Guide

Indoor UHF VHF TV Antenna Amplified Digital DVB-T HDTV TV Antenna
