External Cellular / LTE (NB-IoT) Connector Mount Antenna

Brand Name : MS

Model Number : MS-NB-002

Certification : RoHS

Place of Origin : China

MOQ : 100 PCS

Price : USD$ 0.5 / PCS - USD$ 0.55 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS

Delivery Time : 5-8 days

Packaging Details : 100 PCS / BAG

Product Name : External Cellular / LTE Connector Mount Antenna

Keyword : NB-IoT Antenna

Frequency Range : 698-960 / 1710-2170 MHz

Peak Gain : 2dBi

VSWR : < 3.5

Impedance : 50 ohm

Polarization : Linear

Radiation Pattern : Omni-Directional

Length : 59 mm

Connector : SMA Male

Contact Now

1. Product Name

External Cellular / LTE (NB-IoT) Connector Mount Antenna

2. Description

--2.1 Applications

Infotainment Systems

HD Video Transmission

Dash Cameras

Connected Cars

Fleet Management

Gateways

Public Transportation

Logistics

--2.2 Features

Sustained High Efficiency and Performance

NB-IoT and Portable Devices

Ground Plane Independent

3. Introduction

This IoT connector mount antenna is designed for compact installations with no compromise on efficiency and performance. It is suitable for Low Power Wide Area Network NB-IoT applications where devices require constant connectivity within frequencies operating between 698-960/1710-2170MHz. It is also ideal for HD video transmission, dash cameras, fleet management, logistics, routers and so on.

4. Specs

Electrical Properties

1.1	Frequency	698-960/1710-2170MHz
1.2	Gain (peak)	2dBi
1.3	V.S.W.R	3.5 MAX
1.4	Return Loss	-5dB Maximum
1.5	Radiation	Omni-directional
1.6	Polarization	Linear
1.7	Power Handling	2W

Mechanical Properties

2.1	Cable
2.2	Antenna Cover	TPE
2.3	Antenna Base	Brass
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug

5. Antenna Drawing

External Cellular / LTE (NB-IoT) Connector Mount Antenna

6. VSWR

External Cellular / LTE (NB-IoT) Connector Mount Antenna

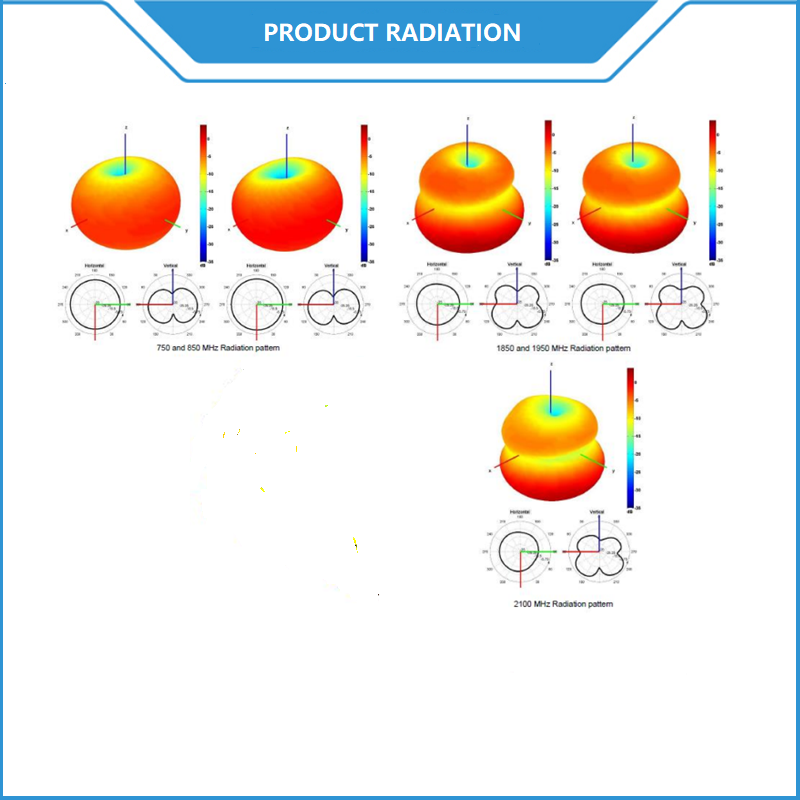

7. Radiation Pattern

External Cellular / LTE (NB-IoT) Connector Mount Antenna
