Internal 2dBi WIFI Bluetooth Antenna Embedded FPC 2.4GHz WIFI PIFA Antenna

Brand Name : MS

Model Number : MS-24-NZ-003

Certification : RoHS

Place of Origin : China

MOQ : 100 PCS

Price : USD$ 0.3 / PCS - USD$ 0.35 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS

Delivery Time : 5-8 days

Packaging Details : 100 PCS / BAG

Product Name : Internal 2.4GHz WIFI PIFA Antenna

Frequency : 2400-2500 MHz

Gain : 3 dBi

VSWR : < 2.0

Impedance : 50 Ω

Polarization : Linear

Radiation Pattern : Omni-Directional

Max Input Power : 1 W

Dimensions : 31*29 mm

Weight : 1.2 g

Cable Type : RG 1.13 / RG 1.37

Connector : IPEX (U.FL)

Adhesive : 3M 467

Mounting : Embedded

Contact Now

1. Product Name

Internal 2dBi Embedded FPC 2.4GHz WIFI PIFA Antenna

2. Description

--2.1 Applications:

2.4GHz WIFI

Bluetooth,Zigbee, BLE

ISM 2.4GHz

Metering, Security

M2M Applications

--2.2 Features:

Low Profile Antenna

High performance

PIFA Type

3dBi Gain

IPEX(U.FL) Connector

3. Introduction

This 2.4GHz PIFA Antenna works on Wi-Fi, ZigBee, Bluetooth and ISM band at 2.4GHz. This antenna has been designed as a general solution to cover the current market applications, with easy installation through a cable connection. The antenna has been designed to work on different plastics material and thickness. We have selected a piece of ABS plastic with 2mm of thickness as a baseline for testing.

4. Specs

Electrical Properties

1.1	Frequency	2.4 GHz ~ 2.5 GHz
1.2	Gain (peak)	3 dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	1W

Mechanical Properties

2.1	Cable	RG1.13 /RG1.37
2.2	Antenna Cover	ABS
2.3	Antenna Base	Adhesive Sticker
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	IPEX (U.FL)

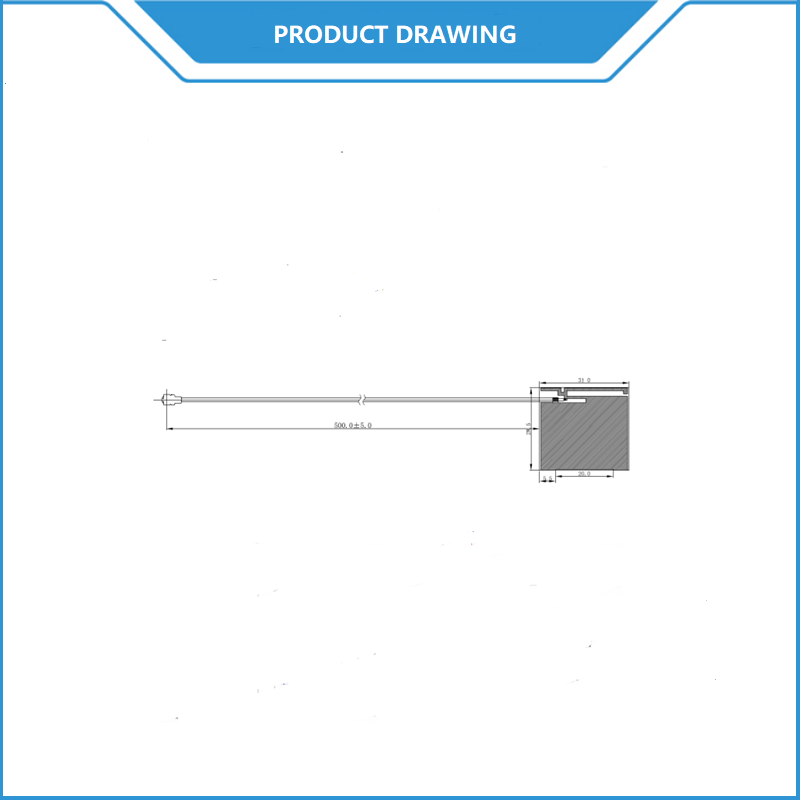

5. Antenna Drawing

Internal 2dBi WIFI Bluetooth Antenna Embedded FPC 2.4GHz WIFI PIFA Antenna

6. VSWR

Internal 2dBi WIFI Bluetooth Antenna Embedded FPC 2.4GHz WIFI PIFA Antenna

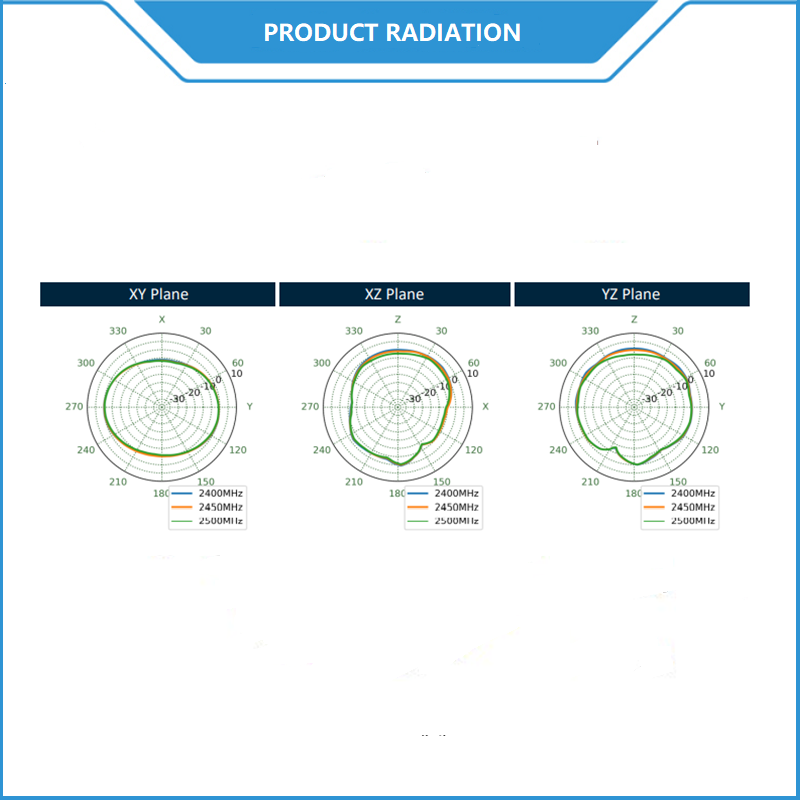

7. Radiation Pattern

Internal 2dBi WIFI Bluetooth Antenna Embedded FPC 2.4GHz WIFI PIFA Antenna
